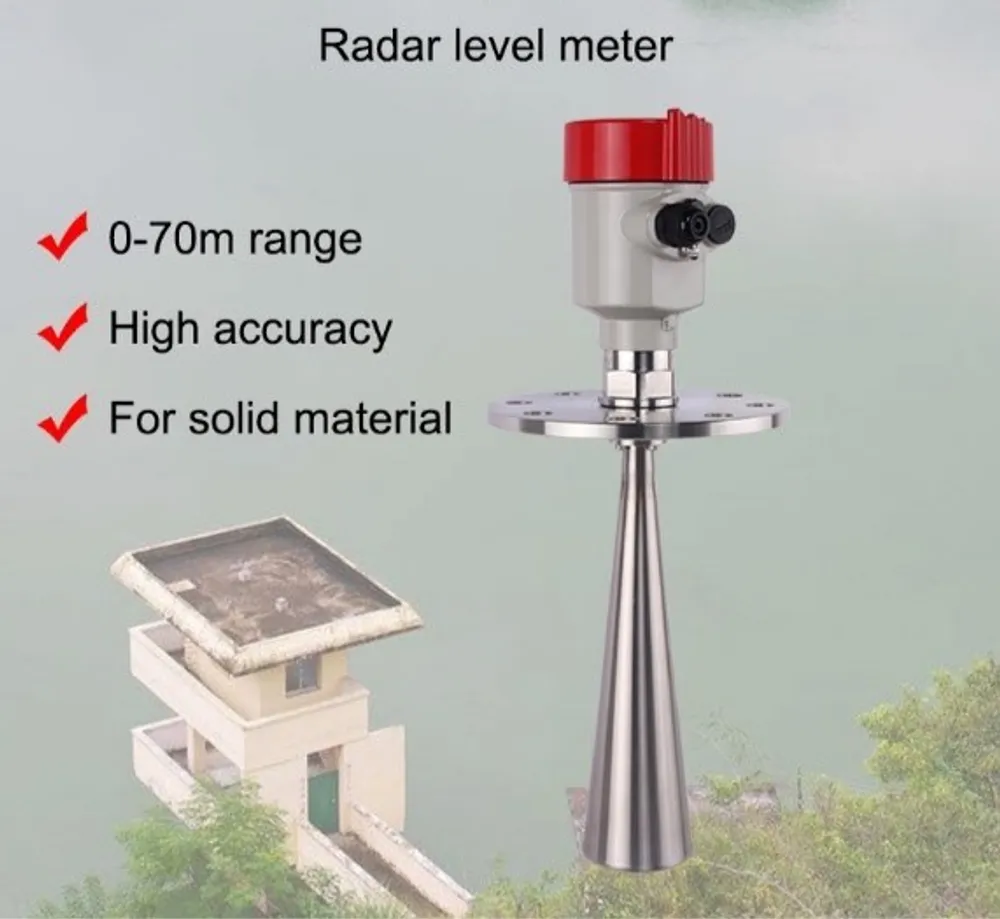

BETA-RD903 Solid material radar level meter

โพสต์เมื่อ : 12 ม.ค 2565 เวลา 7:16 น.

BETA-RD903 Solid Meterial Radar Level Metter

BETA-RD903 Solid material radar level meter with highfrequency, measurement of solid material, strong dust, easy to crystallize,condensation occasion

Range 0~70 m

Accuracy ±15mm

Application Solid material, strong dust, easy to crystallize, condensation occasion

Frequency Range 26GHz

Product	Radar level meter
Model	BETA-RD903
Measure range	0-70 meters
Application	Solid material, strong dust, easy to crystallize, condensation occasion
Process Connection	Thread, Flange
Medium Temperature	-40℃~250℃
Process Pressure	-0.1 ~ 0.3 MPa (universal flange); -0.1～4.0 MPa (flat flange)
Accuracy	±15mm
Protection Grade	IP67
Frequency Range	26GHz
Signal Output	4-20mA (Two-wire/Four)
RS485/Modbus
Power supply	2-wire（DC24V）/ 4-wire（DC24V /AC220V）

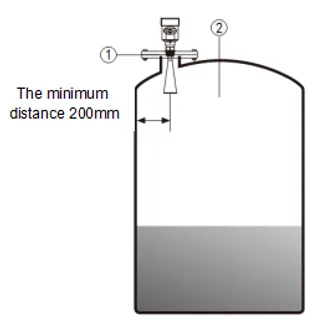

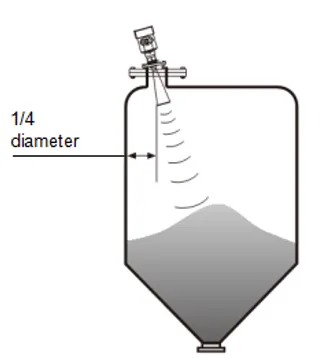

Be installed in the diameter of the 1/4 or 1/6. The minimum distance from the tank wall should be 200mm.

Note: ① datum ②The container center or axis of symmetry

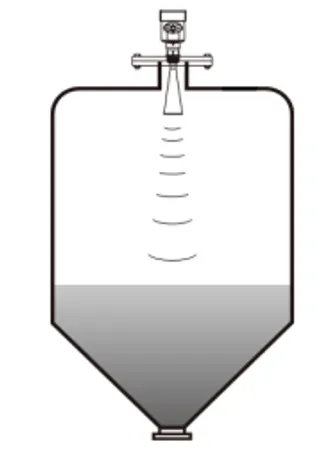

The top conical tank level, can be installed at the top of the tank is intermediate,

can guarantee the measurement to the conical bottom

A feed antenna to the vertical alignment surface.

If the surface is rough, stack angle must be used to adjust the angle of cardan flange of the antenna to the alignment surface.
