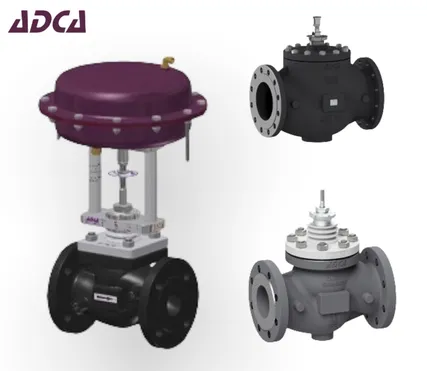

The PV25 On-Off valves are single seated
The PV25 On-Off valves
The PV25 On-Off valves are single seated, two-way body constructed with in-line straight connections. The PA pneumatic actuator comprises a rubber diaphragm and multi-springs. Its action can be DA – direct action (air to close) or RA – reverse action (air to open). Their wide application ranges allow the use of this valve with the most common process fluids such as water, superheated water, steam, air, gas and other non corrosive fluids.
| MATERIAL SG iron or stainless steel |
| SIZES DN15 to DN100 |
| CONNECTIONS Flanged EN PN 16 |
| FROW RATE COEFFICENTS Kvs 3,8 to136,7 |

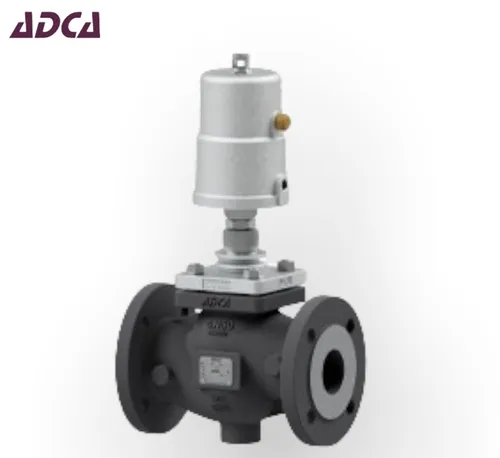

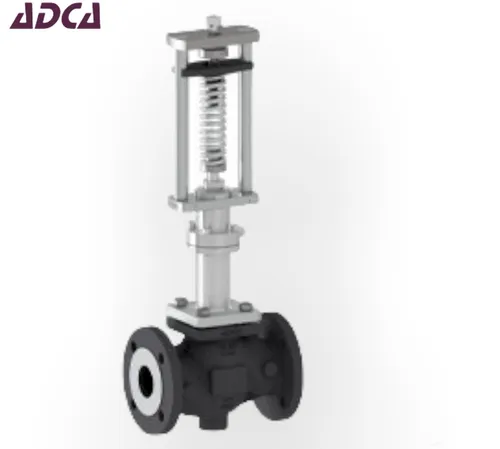

The ADCATrol PPV15 is a series of single seated
The ADCATrol PPV15 is a series of single seated
The ADCATrol PPV15 is a series of single seated, two-way pneumatic on/off globe valves with piston actuator. These valves are suitable for use with the most common process fluids such as steam, water, superheated water, air, neutral gases and oils.
MATERIAL SG iron,carbon steel or stainless steel
SIZES DN15 to DN50
CONNECTIONS PPV15G-Flanged EN 1092-2 PN16
PPV15S and PPV15i - Flanged EN
1092-1 PN 16or PN40
FLOW RATE COEFFICIENTS Kvs 5,1 to 40

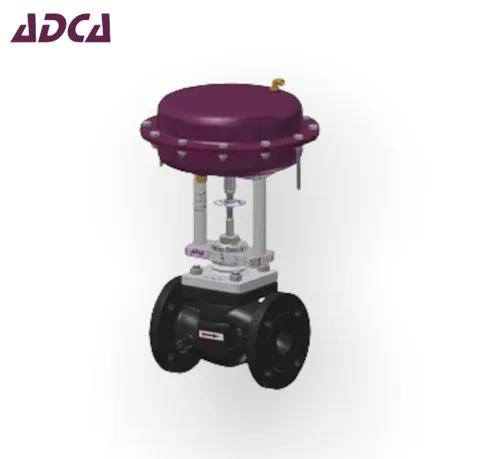

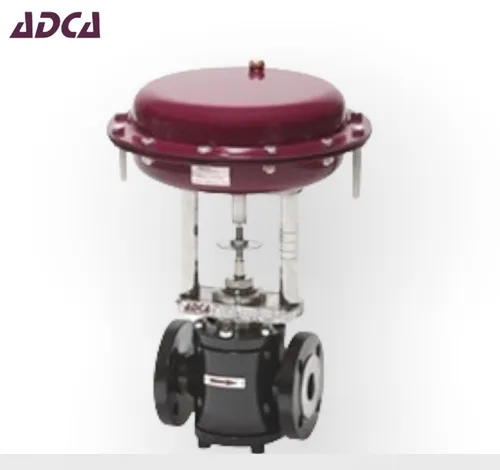

The PV40 control valves are single seated
The PV40 control valves are single seated
The PV40 control valves are single seated, two-way body constructed with in-line straight connections. The PA pneumatic actuator is rubber diaphragm and multi-springs. Its action can be DA – direct action (air to close) or RA – reverse action (air to open). The PV40 valves have been designed to ensure accurate control in any process condition. Their wide application ranges allow the use of this valve with the most common process fluids such as water, superheated water, steam, air, gas and other non-corrosive fluids.
MATERIAL Carbon steel or stainless steel
SIZES DN 15 to DN 50
CONNECTIONS Flanged EN PN 40
Flanged ASME Class 150 or 300
FLOW RATE COEFFICIENTS Kvs 3,8 to 40,1

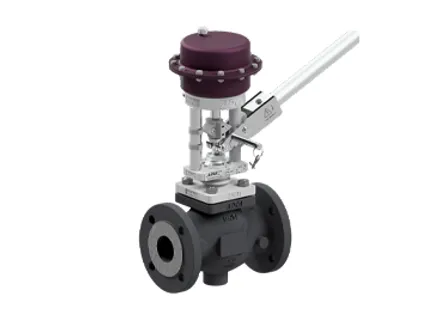

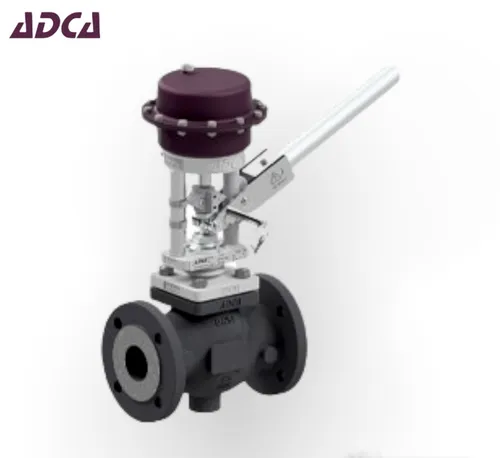

The VPA26/2 blowdown valve series was specially designed for application on steam boilers
The VPA26/2 blowdown valve series was specially designed for application on steam boilers
The VPA26/2 blowdown valve series was specially designed for application on steam boilers, to remove sludge sediments that naturally settle on the bottom of the boiler. These intermittent valves operate manually or automatically with timed control. This valve is available with a diaphragm actuator and/or manual operation lever.
MATERIAL Carbon steel or stainless steel
SIZES 3/4” to 2” – DN 20 to DN 50
CONNECTIONS Flanged EN PN 40
Flanged ASME Class 300
FLOW RATE COEFFICIENTS Kvs 6,3 or 16

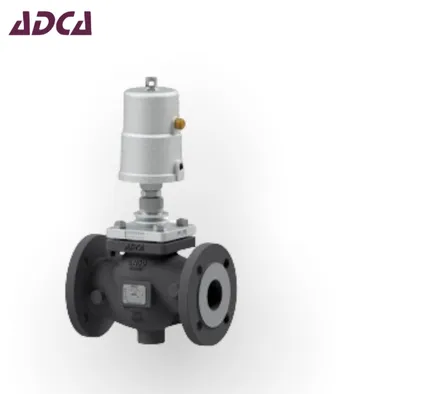

The ADCATrol OVF40 is a series of single seated
The ADCATrol OVF40 is a series of single seated
The ADCATrol OVF40 is a series of single seated, two-way overflow valves with inline connections. These valves are mainly used in closed loop systems to ensure that a minimum flow is kept in the event that all connected consumers are in a low load condition or have simply shut down. In these scenarios, the valve will prevent problems such as pressure surges, pump cavitation and overheating.
MATERIAL Carbon steel or stainless steel
SIZES DN 15 to DN 80
CONNECTIONS Flanged EN PN 16 or PN 40
FLOW RATE COEFFICIENTS Kvs 5,2 to 89,7

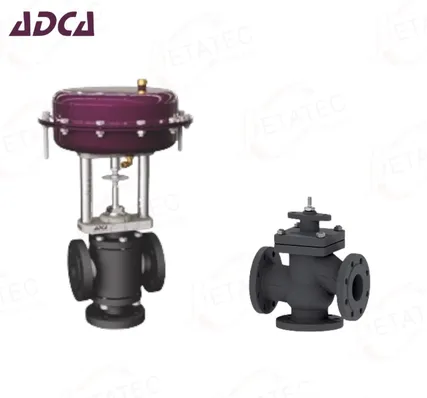

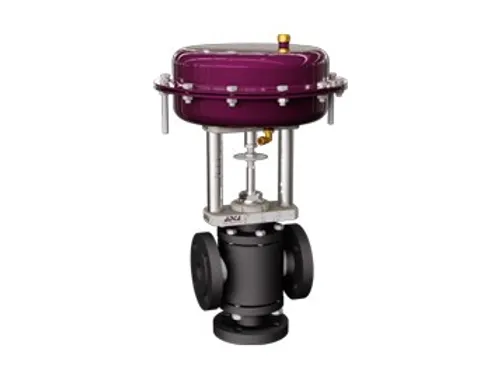

The PV403 control valves are three-way valve body for mixing service
The PV403 control valves are three-way valve body for mixing service
PV403 | DN 15 - 50
The PV403 control valves are three-way valve body for mixing service. The PA pneumatic actuator is rubber diaphragm and multi-springs. Its action can be DA – direct action (air to close) or RA – reverse action (air to open). The V403 valves have been designed to assure an accurate control in any process condition. Their wide application ranges allow the use of this valve with the most common process fluids such as water, superheated water, diathermic oil, steam, air, gas and other non corrosive fluids.
MATERIAL Carbon steel or stainless steel
SIZES DN 15 to DN 50
CONNECTIONS Flanged EN PN 16 or PN 40
Flanged ASME Class 150 or 300
FLOW RATE COEFFICIENTS Kvs 4 to 40
