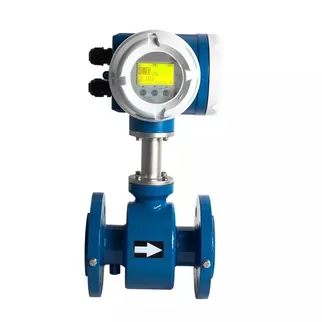

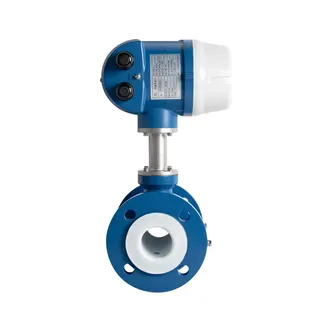

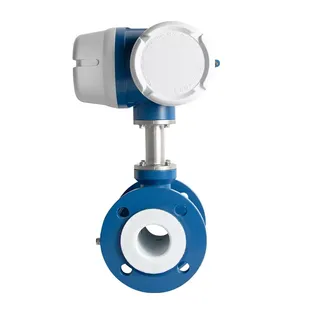

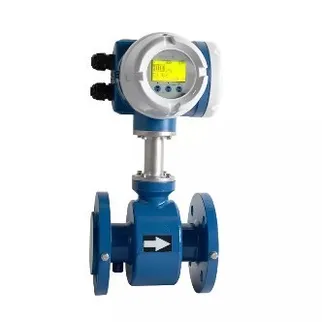

BETA-LDG-C Electromagnetic flow meter

โพสต์เมื่อ : 12 ม.ค 2565 เวลา 5:49 น.

BETA-LDG-C Electromagnetic Fro Meter

High accuracy magnetic flowmeter. Special flow meter for chemical and pharmaceutical industry.

The latest models in 2021

Pipe diameter	DN15~DN1000
Accuracy	±0.5%(Flow speed > 1m/s)
Reliably	0.15%
Electric conductivity	Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm
Turndown ratio	1:100

Product	Electromagneticflow meter
Model	BETA-LDG-C
Diameter nominal	DN15~DN1000
Nominal pressure	DN6 - DN80, PN<4.0MPa;DN100 - DN150, PN<1.6MPa;DN200 – DN1000, PN<1.0MPa;DN1200 – DN2000, PN<0.6MPa
Accuracy	±0.3%，±2mm/s(flowrate<1m/s)
Repetitiveness	0.15%
Liner material	PFA, F46, Neoprene, PTFE, FEP
Electrode material	Stainless steel SUS316, Hastelloy C, Titanium,Tantalum, Platinum-iridium
Medium temperature	Integral type: -10℃~80℃;Split type: -25℃~180℃
Power supply	100-240VAC，50/60Hz / 22VDC—26VDC
Electrical conductivity	IP65, IP68(optional)
Product standard	JB/T 9248-2015
